Configuration files

Configuration files can be used to automatically control the behavior of Lunascope in a number of ways:

  • to determine the ordering of signals and annotations in the docks and main viewer

  • to specify bespoke colors for signals and annotations

  • to specify display y-axes ranges, as well as reference lines (e.g. at 0)

  • to specify filters (Butterworth IIR bandpass) with arbitrary transition frequencies

  • to set which docks are visible or hidden on start up

  • to specify the locations of resources for POPS

  • to control other options, e.g. behavior of copy/save outputs table with respect to missing values, etc

Example config file

Here is a minimal example (e.g. a plaintext file called basic.cfg):

% thicker line for signals (slower to render, but better when screen sharing)
line-weight = 2

% set POPS resource location
pops-path = /home/mary/work/pops

% always show spectrogram dock by default
spectrogram-dock = T

% signal order/options
[sig]
EEG col=white ylim=-200,200
EMG col=brown f=10,80
ECG col=red

% annotation order/options
[ann]
N1
N2
N3
R
W
Arousal col=yellow

Applying configurations

Configurations can be applied by adding the -c option on first starting Lunascope:

lunascope s.lst -c basic.cfg

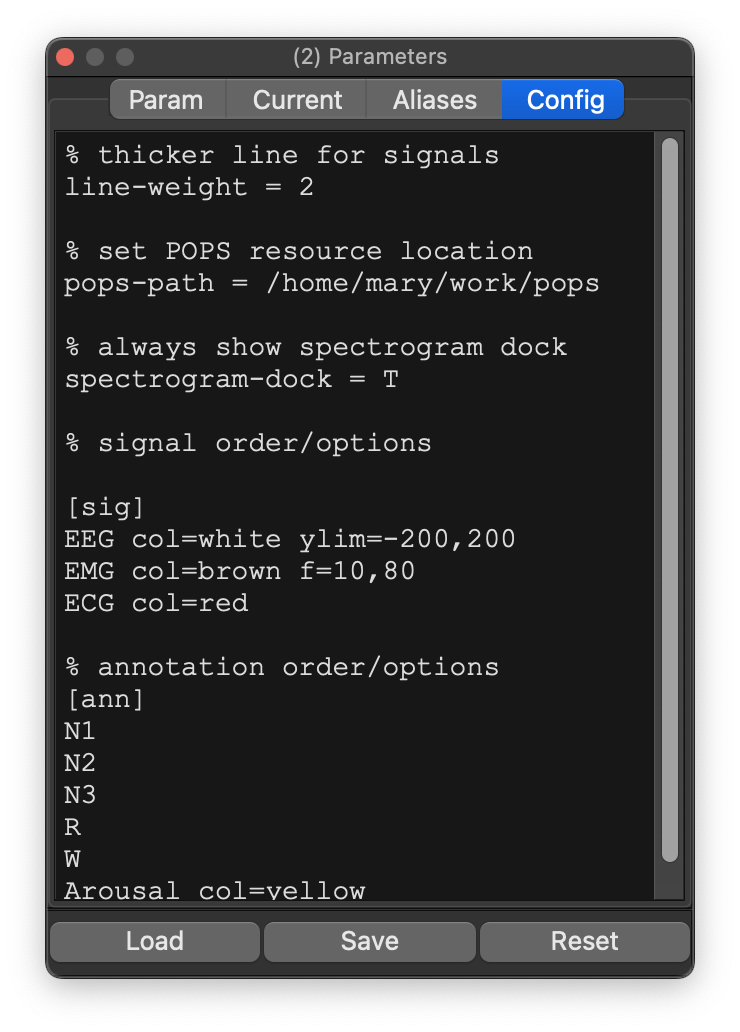

This populates the Config tab of the Settings dock:


Alternatively, you can add/edit the text in this Config tab directly, or use the Load/Save options to load/save the configuration as a plain text file.

Importantly, configurations are applied:

  • when first attaching a new record

  • when hitting Refresh on an existing record

Primary domains

A config file is a plaintext file that has a number of sections:

  • [sig] : per-signal config options

  • [ann] : per-annotation config options

  • [par] : general parameter settings as key-value pairs (e.g. controlling which docks are shown)

  • % : lines starting with % are treated as comments

Typically, the label must appear before the corresponding entries (one-per-line); an exception is that the initial default section is [par], i.e. so this:

line-weight = 2

is the same as this:

[par]
line-weight = 2

[sig]: Signal options

After a [sig] flag, non-empty lines are assumed to start with the channel label, optionally followed by different arguments:

  • col : set the color of the signal, either as a hexcode (#FFFFFF) or name (white)
  • ylim : set the physical min/max, e.g. ylim=-200,200
  • y : draw reference lines at these y values, e.g. y=-80,0,80
  • f : define a User filter option, e.g. f=10,30 for a bandpass 10 - 30 Hz filter

The order of the signals in this file determines the order in which signals are shown in Lunascope.

PSG example

Here we use a config file in a standard PSG setting, to group channels by type (EEG, EMG, EOG, ECG, respiratory, etc):

[sig]
C3  col=#4DA6FF
C4  col=#4DA6FF
A1  col=#4DA6FF
A2  col=#4DA6FF
LOC col=#66CCFF
ROC col=#66CCFF
EMG1    col=#FF9933
EMG2    col=#FF9933
EMG3    col=#FF9933
LEFT_LEG1   col=#FF9933
LEFT_LEG2   col=#FF9933
RIGHT_LEG1  col=#FF9933
RIGHT_LEG2  col=#FF9933
ECG1    col=#FF3333
ECG2    col=#FF3333
AIRFLOW col=#33CC33
NASAL_PRES  col=#33CC33
THOR_EFFORT col=#33CC33
ABDO_EFFORT col=#33CC33
SNORE   col=#33CC33
SUM col=#33CC33
SpO2    col=#CC00CC
OX_STATUS   col=#CC00CC
PULSE   col=#CC00CC
PlethWV col=#CC00CC
POSITION    col=#CCCC00
Light   col=#999999
HRate   col=#009999

[ann]
N1  col=#0066CC
N2  col=#0066CC
N3  col=#0066CC
R   col=#0066CC
W   col=#0066CC
Arousal_ASDA    col=#FF6600
ASDA_arousal    col=#FF6600
Hypopnea    col=#33CC33
SpO2_artifact   col=#CC00CC
SpO2_desaturation   col=#CC00CC

Here the colors are defined by hex codes, but you can use standard color labels too. Note that this example also orders the annotations with the [ann] flag.

The above leads to this grouping/coloring of PSG channels (i.e. which is different from the order in the original EDF)

Viewer 1

hd-EEG application

Lunascope supports visualization of high-density EEG recordings with hundreds of channels. Here, we used a color-map to order hd-EEG channels along a anterior-posterior gradient, and color them respectively. (A single prompt to ChatGPT was used to generate this file, in fact):

[sig]
Fp1 col=#d9bd20
Fpz col=#f2d224
Fp2 col=#fedc25
AF7 col=#d98620
AF3 col=#d98620
AFz col=#f29524
AF4 col=#fe9c25
...

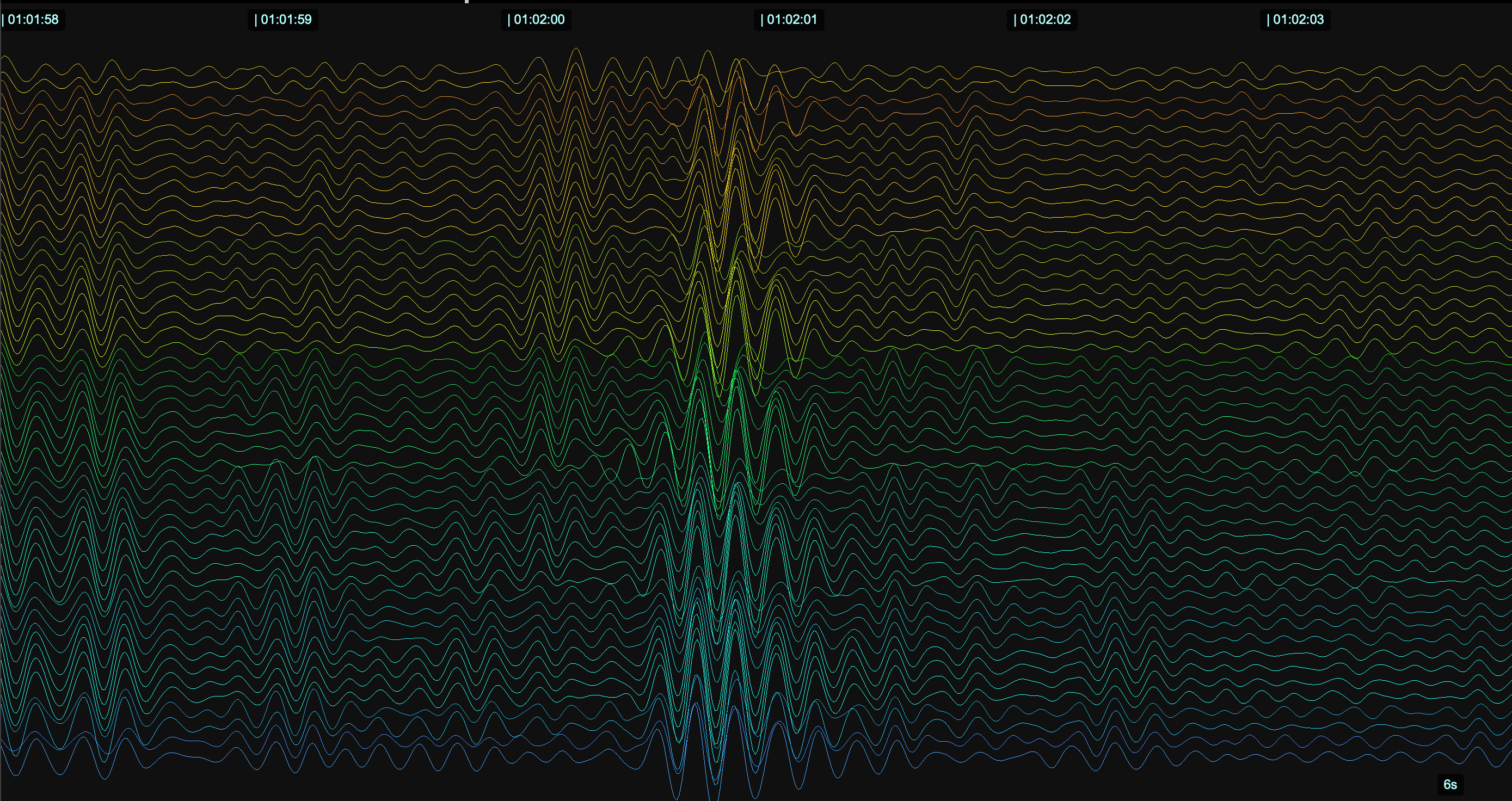

Applying this, and using the Y-axis scaling/spacing options as described here, we can see some nice renderings of NREM transients, here in a small 6-second window.

HD EEG 5

[ann] : annotations

Annotation order can be controlled the same way as for signals; in terms of other options, only the col keyword is recognized however.

[par] : general parameters

These options can be specified in a [par] block (or prior to any other block):

Option Values Description
show-lines T/F Show Y=0 reference lines for all channels
line-weight Numeric, 1+ Set line weight (width) for main viewer (default 1 pixel)
project-dock T/F Show the project dock (default T)
settings-dock T/F Show the settings dock (default T)
signal-dock T/F Show the signal dock (default T)
annot-dock T/F Show the annotation dock (default T)
instance-dock T/F Show the annotation instances dock (default T)
console-dock T/F Show the console dock (default F)
output-dock T/F Show the output dock (default F)
mask-dock T/F Show the mask dock (default F)
hypnogram-dock T/F Show the hypnogram dock (default F)
spectrogram-dock T/F Show the spectrogram dock (default F)
table-allow-empty T/F Allow empty cells when exporting the Outputs table (default F)
na-token . If marking empty cells, use this string (default NA)
pops-path Path, C:\data\pops Point to current POPS resources
pops-model Model, s2 Specify the POPS model (default s2)

Rendered signals

Note that certain options (e.g. forcing y-axis ranges with ylim) will only take effect when looking at rendered signal data.
